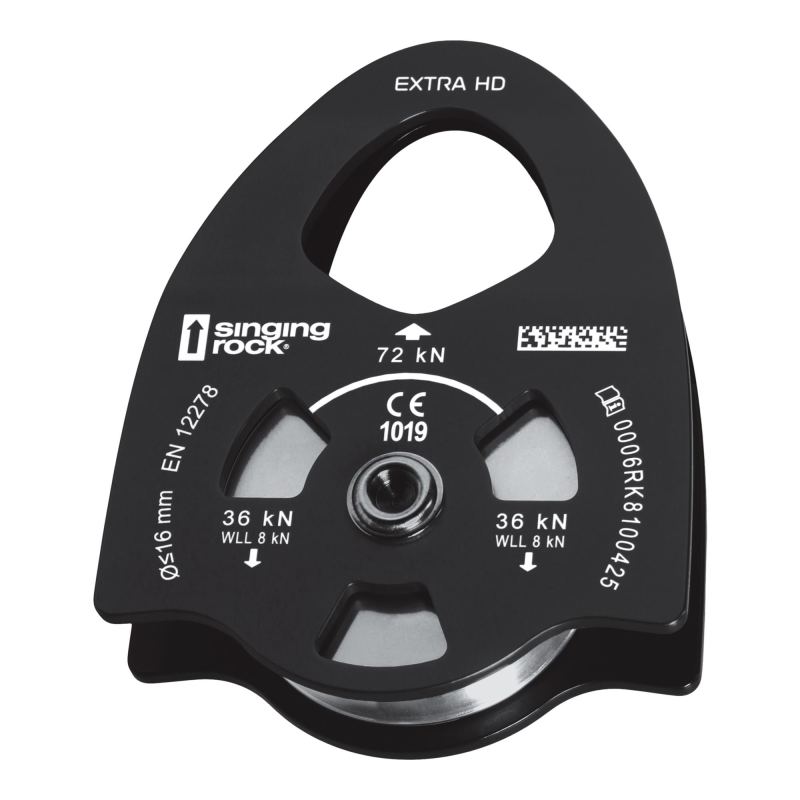

Singing Rock PULLEY EXTRA HD – High-Strength Professional Pulley

Singing Rock PULLEY EXTRA HD is a robust high-strength single pulley developed for the most demanding industrial applications, hauling systems and professional work at height.

It is particularly suitable for use in the energy sector, including installation of electrical power lines. The pulley can be used with static and dynamic textile ropes up to 16 mm in diameter and is also suitable for high-strength textile ropes capable of replacing steel wire ropes in appropriate systems.

The high-quality self-lubricating sintered bronze friction bearing provides excellent durability at low speeds and efficiency of up to 86%.

The pulley is designed and optimised for use with a Prusik friction knot or mechanical rope clamp. Its large attachment point can accommodate up to three carabiners.

The side plates protect the rope from contact with surrounding objects and help prevent damage to the sheave. Openings in the side plates allow easy cleaning of the area around the bearing.

Key Features

• High-strength single pulley.
• Designed for industrial use and hauling systems.
• Breaking strength: 72 kN.
• Working load: 2 × 8 kN.
• Suitable for ropes up to 16 mm.
• Efficiency up to 86%.
• Self-lubricating sintered bronze bearing.
• Suitable for static and dynamic textile ropes.
• Suitable for high-strength textile ropes.
• Optimised for use with a Prusik knot or rope clamp.
• Attachment point accommodates up to three carabiners.
• Protective side plates.
• Cleaning openings around the bearing.
• Unique production number marking.
• EN 12278 certified.

Specifications

• Brand: Singing Rock
• Model: PULLEY EXTRA HD
• Product Code: RK810BX00
• Type: High-strength single pulley
• Colour: Black
• Weight: 435 g
• Strength: 72 kN
• Working Load: 2 × 8 kN
• Maximum Rope Diameter: 16 mm
• Bearing Type: Friction bearing
• Bearing Material: Self-lubricating sintered bronze
• Efficiency: Up to 86%
• Sheave: Aluminium alloy
• Side Plates: Aluminium alloy
• Axle: Stainless steel
• Standard: EN 12278
• CE: 1019

Why Choose the Singing Rock PULLEY EXTRA HD?

The PULLEY EXTRA HD combines exceptional 72 kN strength, industrial-grade durability and compatibility with ropes up to 16 mm. Its durable self-lubricating bronze bearing and protective side plates make it a dependable choice for intensive professional hauling systems.

When Should You Choose This Pulley?

Choose the PULLEY EXTRA HD for industrial hauling systems, work at height, rescue and transport systems, energy-sector applications, power-line installation and other professional rope systems requiring exceptional strength and durability.
