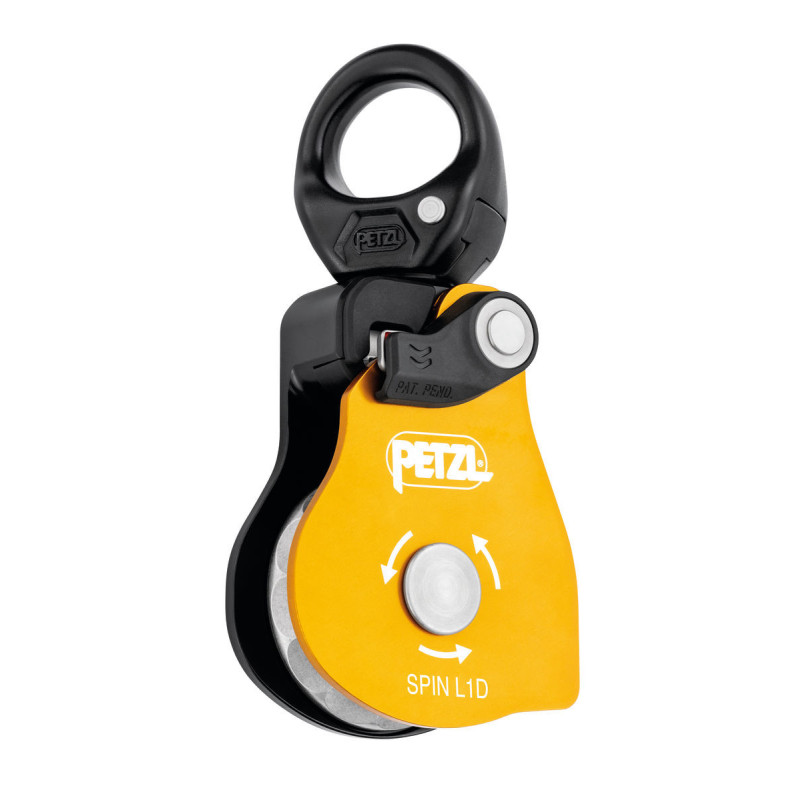

Petzl SPIN L1D – High-Efficiency Pulley with One-Way Rotation

Petzl SPIN L1D is a professional high-efficiency single pulley with an integrated swivel, designed for work at height and technical rescue systems. It is particularly suitable for use in conjunction with a descender when setting up heavy-load deviations and hauling systems.

The distinctive feature of the SPIN L1D is its one-way faceted sheave. It provides high efficiency when hauling while creating additional rope friction for increased braking when lowering heavy loads.

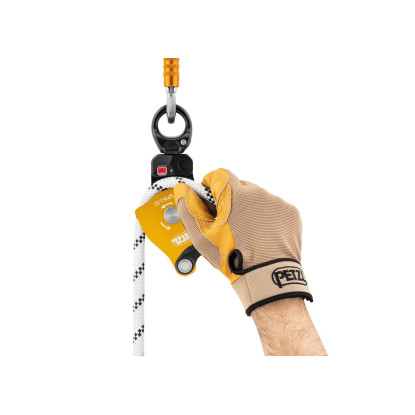

Rope Installation While Connected to the Anchor

The SPIN L1D features an opening moving side plate with a triple-action opening mechanism. The system is quick and easy to operate, even while wearing gloves.

The rope can be installed while the pulley remains connected to the anchor, simplifying installation and manipulation in professional rope systems.

93% Hauling Efficiency

The 40 mm sheave is mounted on sealed ball bearings and provides an efficiency of 93% when hauling.

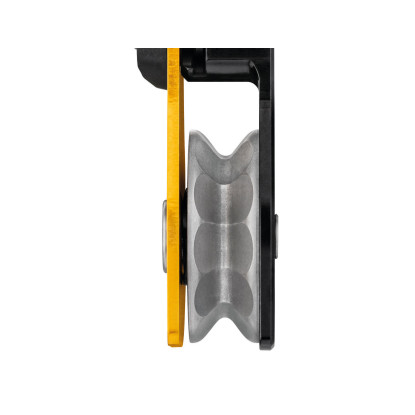

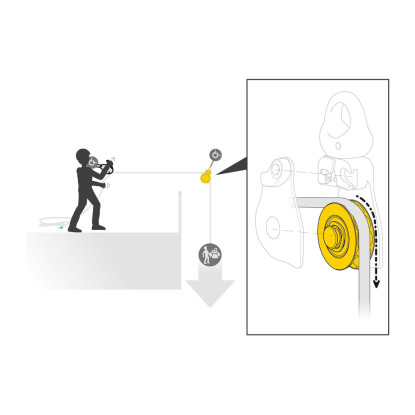

The faceted sheave rotates in only one direction. During lowering, its design creates additional friction zones for the rope, providing additional braking when controlling heavy loads.

Integrated Swivel

The integrated swivel allows the pulley to orient itself according to the direction of the load, even while under tension. This simplifies handling and helps maintain efficient system alignment.

The swivel attachment point accepts up to three carabiners and also allows ropes or slings to be connected directly for easier manoeuvres.

Compatible with a Prusik Friction Hitch

The special side plate design protects the rope path and allows the use of a Prusik friction hitch in a progress-capture hauling system.

Visual Safety Indicator

A red indicator provides a clear visual warning when the moving side plate is unlocked, allowing the user to quickly verify the device before loading the system.

Key Features

• High-efficiency professional single pulley.
• One-way rotating faceted sheave.
• 93% hauling efficiency.
• Additional rope friction for braking during lowering.
• 40 mm sheave diameter.
• Sealed ball bearings.
• Rope can be installed while the pulley remains connected to the anchor.
• Quick triple-action side plate opening.
• Easy operation while wearing gloves.
• Red unlocked-side-plate indicator.
• Integrated swivel.
• Swivel allows orientation under load.
• Attachment point accepts up to three carabiners.
• Allows direct attachment of ropes and slings.
• Compatible with a Prusik friction hitch in progress-capture systems.
• Designed for work at height and rescue applications.

Specifications

• Brand: Petzl
• Model: SPIN L1D
• Reference: P001AA00
• Type: High-efficiency single pulley with one-way rotation and swivel
• Colour: Yellow
• Weight: 425 g
• Minimum Rope Diameter: 8 mm
• Maximum Rope Diameter: 13 mm
• Sheave Diameter: 40 mm
• Sheave Type: Sealed ball bearings
• Efficiency: 93%
• Maximum Working Load: 3 × 2 = 6 kN
• Breaking Strength: 36 kN
• Materials: Aluminum, stainless steel, nylon
• Certification: CE*, NFPA 2500 Pulley General Use
• CE: Based on applicable requirements of EN 12278
• Manufacturer Guarantee: 3 years

Why Choose the Petzl SPIN L1D?

The Petzl SPIN L1D combines a 93% efficient pulley, one-way sheave and integrated swivel in a single professional device. It provides efficient hauling while creating additional rope friction during lowering. The ability to install the rope without disconnecting the pulley from the anchor makes system setup faster and easier.

When Should You Choose the SPIN L1D?

Choose the SPIN L1D for work at height, rope access, technical rescue and heavy-load hauling or deviation systems. It is particularly useful when combined with a descender in systems requiring efficient hauling and additional friction for controlled lowering of heavy loads.
