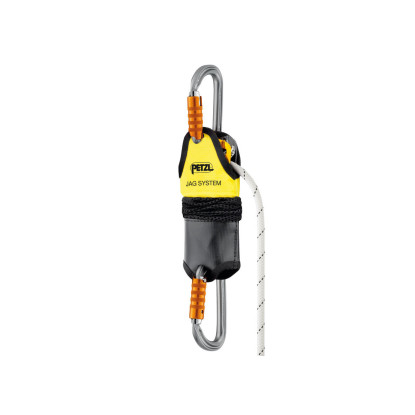

Petzl JAG SYSTEM 2 m – Compact 4:1 Haul Kit for Rescue

Petzl JAG SYSTEM 2 m is a professional pre-rigged haul kit designed for pickoffs, making a releasable anchor, tensioning a system and other work-at-height and rescue operations.

The system provides a 4:1 mechanical advantage, theoretically dividing user effort by four. The JAG and JAG TRAXION pulley sheaves are mounted on sealed ball bearings, providing an excellent manufacturer-rated 91% efficiency.

Key Features

4:1 Mechanical Advantage

The 4:1 mechanical advantage significantly reduces the effort required for hauling. According to Petzl, the 4:1 ratio divides user effort by four.

91% Efficiency

The pulley sheaves are mounted on sealed ball bearings, reducing friction and providing an efficiency rating of 91%.

JAG TRAXION Progress Capture Pulley

The system combines a JAG high-efficiency double pulley with a JAG TRAXION high-efficiency double progress capture pulley, allowing efficient hauling while maintaining progress.

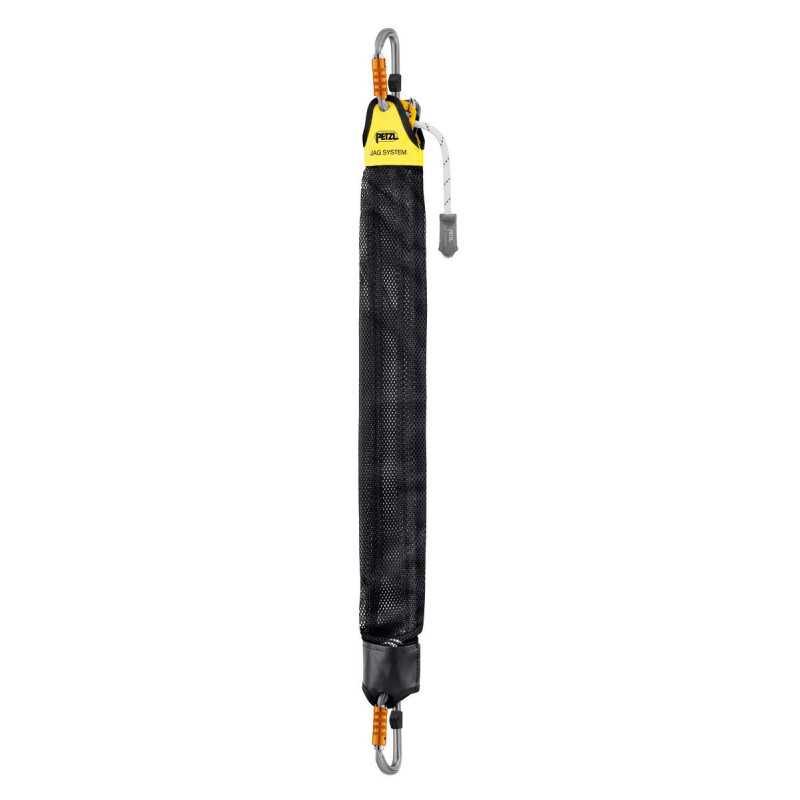

Extremely Compact When Collapsed

The 2 m version has a 2 m deployed length but collapses to only 0.34 m. This allows the system to be deployed even when the distance to the anchor is very short.

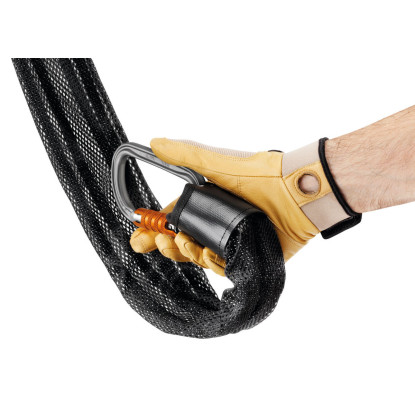

Always Ready to Use

A flexible cover prevents the rope from tangling, allowing the kit to remain pre-rigged and ready for rapid deployment.

Instant Identification

The haul end is immediately identifiable by the yellow end of the cover. The cover ends also hold the connectors in position to facilitate clipping.

Lightweight 8 mm Rope

The system uses a lightweight 8 mm rope. Combined with the 4:1 mechanical advantage, it provides comfortable and effective handling.

Two Am'D TRIACT-LOCK Carabiners Included

The JAG SYSTEM is supplied with two Petzl Am'D TRIACT-LOCK auto-locking carabiners, providing the main connectors required for deployment.

Applications

• pickoffs and victim hauling;
• work-at-height rescue;
• making a releasable anchor;
• tensioning systems;
• confined-space operations;
• Rope Access rescue systems;
• coupling with an I'D descender to create a reversible rescue kit for picking off and evacuating a victim.

Technical Specifications – Petzl JAG SYSTEM 2 m

• Brand: Petzl
• Model: JAG SYSTEM
• Version: 2 m
• Reference: P044AA01
• Type: Haul / rescue kit
• Mechanical advantage: 4:1
• Deployed length: 2 m
• Collapsed length: 0.34 m
• Weight: 805 g
• Rope diameter: 8 mm
• Working load: 6 kN
• Breaking strength: 16 kN
• Efficiency: 91%
• Sheave type: sealed ball bearings
• Materials: aluminum, nylon, polyurethane
• Certifications: CE EN 358, EAC, NFPA 2500 Technical Use
• Guarantee: 3 years

Package Includes

• Petzl JAG high-efficiency double pulley;
• Petzl JAG TRAXION high-efficiency double progress capture pulley;
• 8 mm rope;
• flexible protective cover;
• 2 × Petzl Am'D TRIACT-LOCK auto-locking carabiners.

Why Choose Petzl JAG SYSTEM?

Petzl JAG SYSTEM is a complete, ready-to-use professional 4:1 haul kit. The combination of JAG and JAG TRAXION pulleys, 91% efficiency, integrated 8 mm rope, anti-tangle cover and two Am'D TRIACT-LOCK carabiners makes the system particularly practical for rapid rescue deployment.

When Should You Choose the 2 m Version?

JAG SYSTEM 2 m is ideal for work at height, Rope Access and rescue operations requiring a compact and rapidly deployable system for pickoffs, hauling, tensioning or creating a releasable anchor. The 2 m version offers a practical balance between working length and compactness, collapsing to just 34 cm.
